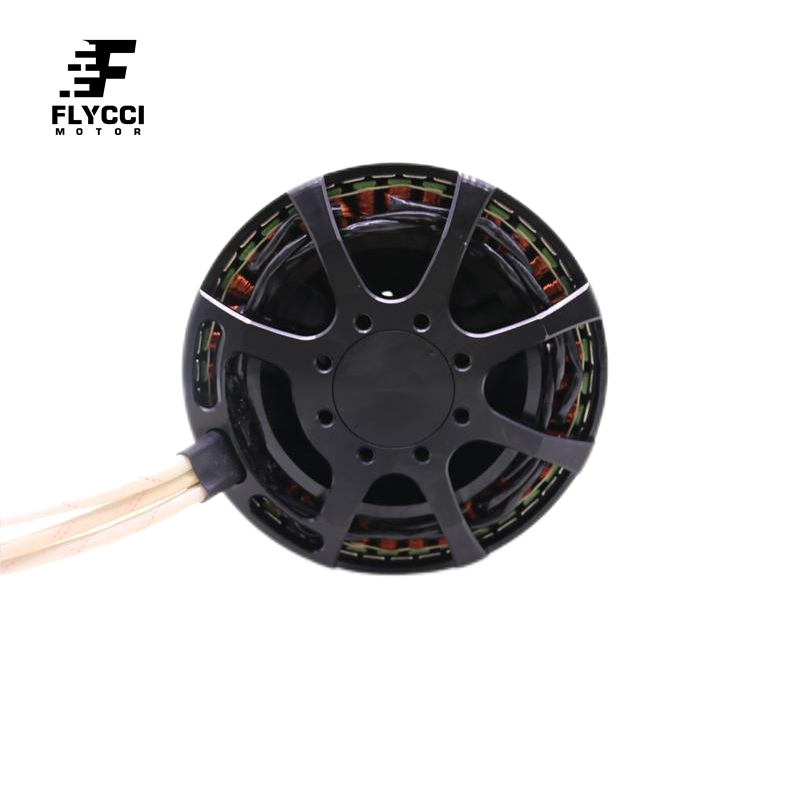

FY160 brushless motor for the long-range inspection drone mapping drone surveying VTOL drone
Parameter:
Suitable for multi-rotor drones and vertical composite wing drones
Motor model：FY160
Structure form：36N42P
Weight：FY160 Hollow out ：2890g/FY160 Sealde type ：3168g
Stator core size：φ138*40 mm
Dimensions：φ147.6*81 mm
Outgoing line：L180 mm
Spindle diameter：IN: φ20 mm OUT:φ10 mm
Dynamic balance standard：≤10mg
DRAWING
TEST REPORT
|
Power configuration Measured data |
||||||||
|
Motor |
ESC |
Propeller |
Applicable |
Applicable Takeoff weight |
Rated power |
Max thrust |
Max power |
|
|
FY160 KV68 |
200A |
F6520 |
Multi-rotor,VTOL |
23KG - 30KG/shaft |
4000W |
60.5KG |
10.5KW |
|
|
Load test data |
Lithium Battery ,Noltage |
|||||||
|
14S 52.5V |
||||||||
|
Thrust(g） |
Current(A) |
RPM |
Power(W) |
Efficiency(g/W) |
Torque(N.m) |
Note |
||
|
14040 |
23 |
1219 |
1207.5 |
11.63 |
9.46 |
40% |
||
|
16952 |
31 |
1347 |
1627.5 |
10.42 |
11.54 |
45% |
||
|
21320 |
42 |
1500 |
2205 |
9.67 |
14.04 |
50% |
||
|
25064 |
53 |
1627 |
2782.5 |
9.01 |
16.33 |
55% |
||
|
28288 |
65 |
1741 |
3412.5 |
8.29 |
18.72 |
60% |
||
|
32552 |
79 |
1856 |
4147.5 |
7.85 |
21.34 |
65% |
||
|
35568 |
93 |
1960 |
4882.5 |
7.28 |
23.79 |
70% |
||
|
40144 |
108 |
2063 |
5670 |
7.08 |
26.25 |
75% |
||
|
43992 |
125 |
2154 |
6562.5 |
6.70 |
29.10 |
80% |
||
|
48360 |
146 |
2270 |
7665 |
6.31 |
32.25 |
85% |
||
|
52312 |
166 |
2374 |
8715 |
6.00 |
35.06 |
90% |
||
|
56888 |
188 |
2488 |
9870 |
5.76 |
37.89 |
95% |
||
|
60528 |
209 |
2581 |
10972.5 |
5.52 |
40.60 |
100% |
||
|
Power configuration Measured data |
||||||||
|
Motor |
ESC |
propeller |
Applicable |
Applicable Takeoff weight |
Rated power |
Max thrust |
Max power |
|
|
FY160 KV40 |
140A-HV |
F5620 56-inch folding propeller |
|
23KG - 29KG/shaft |
3500W |
66KG |
10.9KW |
|
|
Load test data |
Lithium Battery ,Voltage |
|||||||
|
24S 90V |
||||||||
|
Thrust(g） |
Current(A) |
RPM |
Power(W) |
Efficiency(g/W) |
Torque(N.m) |
Note |
||
|
14144 |
14 |
1244 |
1260 |
11.23 |
9.67 |
40% |
||
|
17472 |
18 |
1350 |
1620 |
10.79 |
11.46 |
45% |
||
|
21216 |
23 |
1468 |
2070 |
10.25 |
13.47 |
50% |
||
|
25168 |
30 |
1606 |
2700 |
9.32 |
16.06 |
55% |
||
|
29432 |
38 |
1733 |
3420 |
8.61 |
18.85 |
60% |
||
|
33904 |
47 |
1858 |
4230 |
8.02 |
21.74 |
65% |
||
|
37648 |
55 |
1958 |
4950 |
7.61 |
24.14 |
70% |
||
|
41392 |
65 |
2052 |
5850 |
7.08 |
27.23 |
75% |
||
|
46072 |
74 |
2147 |
6660 |
6.92 |
29.62 |
80% |
||
|
51064 |
83 |
2262 |
7470 |
6.84 |
31.54 |
85% |
||
|
55640 |
100 |
2308 |
9000 |
6.18 |
37.24 |
90% |
||
|
61048 |
109 |
2437 |
9810 |
6.22 |
38.44 |
95% |
||
|
66144 |
122 |
2602 |
10980 |
6.02 |
40.30 |
100% |
||
|
Working continuously at 65% throttle for 10 minutes, the motor temperature is 93℃, the ESC temperature is 70℃, and the ambient temperature is 29℃ |
||||||||
|
Power configuration Measured data |
||||||||
|
Motor |
ESC |
propeller |
Applicable |
Applicable Takeoff weight |
Rated power |
Max thrust |
Max power |
|
|
FY160 KV10 |
60A-HV+ |
F6298 62-inch straight propeller |
VTOL |
25KG - 30KG/shaft |
4100W |
73KG |
13.1KW |
|
|
Load test data |
Lithium Battery ,Voltage |
|||||||
|
96S 360V |
||||||||
|
Thrust(g） |
Current(A) |
RPM |
Power(W) |
Efficiency(g/W) |
Torque(N.m) |
Note |
||
|
15015 |
3.3 |
1237 |
1188 |
12.64 |
9.17 |
40% |
||
|
18795 |
4.6 |
1372 |
1656 |
11.35 |
11.53 |
45% |
||
|
22470 |
6.1 |
1494 |
2196 |
10.23 |
14.04 |
50% |
||
|
27090 |
7.8 |
1627 |
2808 |
9.65 |
16.48 |
55% |
||
|
31710 |
9.9 |
1752 |
3564 |
8.90 |
19.43 |
60% |
||
|
36330 |
12.2 |
1873 |
4392 |
8.27 |
22.39 |
65% |
||
|
41160 |
14.7 |
1986 |
5292 |
7.78 |
25.45 |
70% |
||
|
46305 |
17.6 |
2091 |
6336 |
7.31 |
28.94 |
75% |
||
|
51240 |
20.3 |
2190 |
7308 |
7.01 |
31.87 |
80% |
||
|
56175 |
24.7 |
2298 |
8892 |
6.32 |
36.95 |
85% |
||
|
62265 |
28.6 |
2390 |
10296 |
6.05 |
41.14 |
90% |
||
|
68775 |
32.7 |
2478 |
11772 |
5.84 |
45.37 |
95% |
||
|
73815 |
36.5 |
2560 |
13140 |
5.62 |
49.02 |
100% |
||
|
Power configuration Measured data |
||||||||
|
Motor |
ESC |
propeller |
Applicable |
Applicable Takeoff weight |
Rated power |
Max thrust |
Max power |
|
|
FY160 KV10 |
60A-HV+ |
F5620 56-inch folding propeller |
|
25KG-30KG/shaft |
4100W |
68KG |
11.8KW |
|
|
Load test data |
Lithium Battery ,Voltage |
|||||||
|
96S 360V |
||||||||
|
Thrust(g） |
Current(A) |
RPM |
Power(W) |
Efficiency(g/W) |
Torque(N.m) |
Note |
||
|
14805 |
3.3 |
1250 |
1188 |
12.46 |
9.08 |
40% |
||
|
17640 |
4.3 |
1367 |
1548 |
11.40 |
10.81 |
45% |
||
|
21315 |
5.6 |
1498 |
2016 |
10.57 |
12.85 |
50% |
||
|
25410 |
7.2 |
1635 |
2592 |
9.80 |
15.14 |
55% |
||
|
29715 |
9.4 |
1776 |
3384 |
8.78 |
18.20 |
60% |
||
|
35070 |
11.2 |
1887 |
4032 |
8.70 |
20.41 |
65% |
||
|
38010 |
13.6 |
2012 |
4896 |
7.76 |
23.24 |
70% |
||
|
42525 |
16.1 |
2123 |
5796 |
7.34 |
26.07 |
75% |
||
|
46830 |
18.7 |
2231 |
6732 |
6.96 |
28.82 |
80% |
||
|
51345 |
21.9 |
2346 |
7884 |
6.51 |
32.09 |
85% |
||
|
57015 |
24.9 |
2418 |
8964 |
6.36 |
35.40 |
90% |
||
|
61530 |
27.8 |
2573 |
10008 |
6.15 |
37.15 |
95% |
||
|
68985 |
32.8 |
2725 |
11808 |
5.84 |
41.38 |
100% |
||
|
Working continuously for 5 minutes at 75% throttle, the motor temperature is 101°C, the ESC temperature is 58°C, and the ambient temperature is 30°C. |
||||||||
